Across UK commercial vehicle workshops, the way lifting is approached is changing.
For decades, workshops were built around fixed infrastructure: a pit here, a four-post lift there, with a layout that rarely changed. Increasingly, operators are putting flexibility first and treating permanent infrastructure as the supporting act, and that shift in priorities is the single biggest reason mobile column lifts are growing so quickly across fleets, councils and multi-site operators. The operators who get the most from them are simply the ones who understand where columns excel, where they fall short, and how to avoid designing a workshop that becomes a bottleneck within a year.
The Versatility Advantage: Flexibility vs Fixed Pits and 4-Post Lifts
At its simplest, the appeal of mobile columns comes down to one idea: you bring the lift to the vehicle, rather than the vehicle to the lift. That sounds like a small distinction, but it fundamentally changes how a workshop operates day to day.
No Civil Works, No Disruption
Installing a pit or an in-ground lift is a construction project. It involves excavation, drainage, structural design and a meaningful period of downtime while the work is carried out. Mobile columns sidestep all of that. Provided you have a suitable concrete slab, they require no permanent structural changes to the building at all.
That makes them particularly valuable for operators in leased buildings, temporary depots, or any site where committing to long-term civil investment simply doesn’t stack up financially.
True Portability Across Bays and Sites

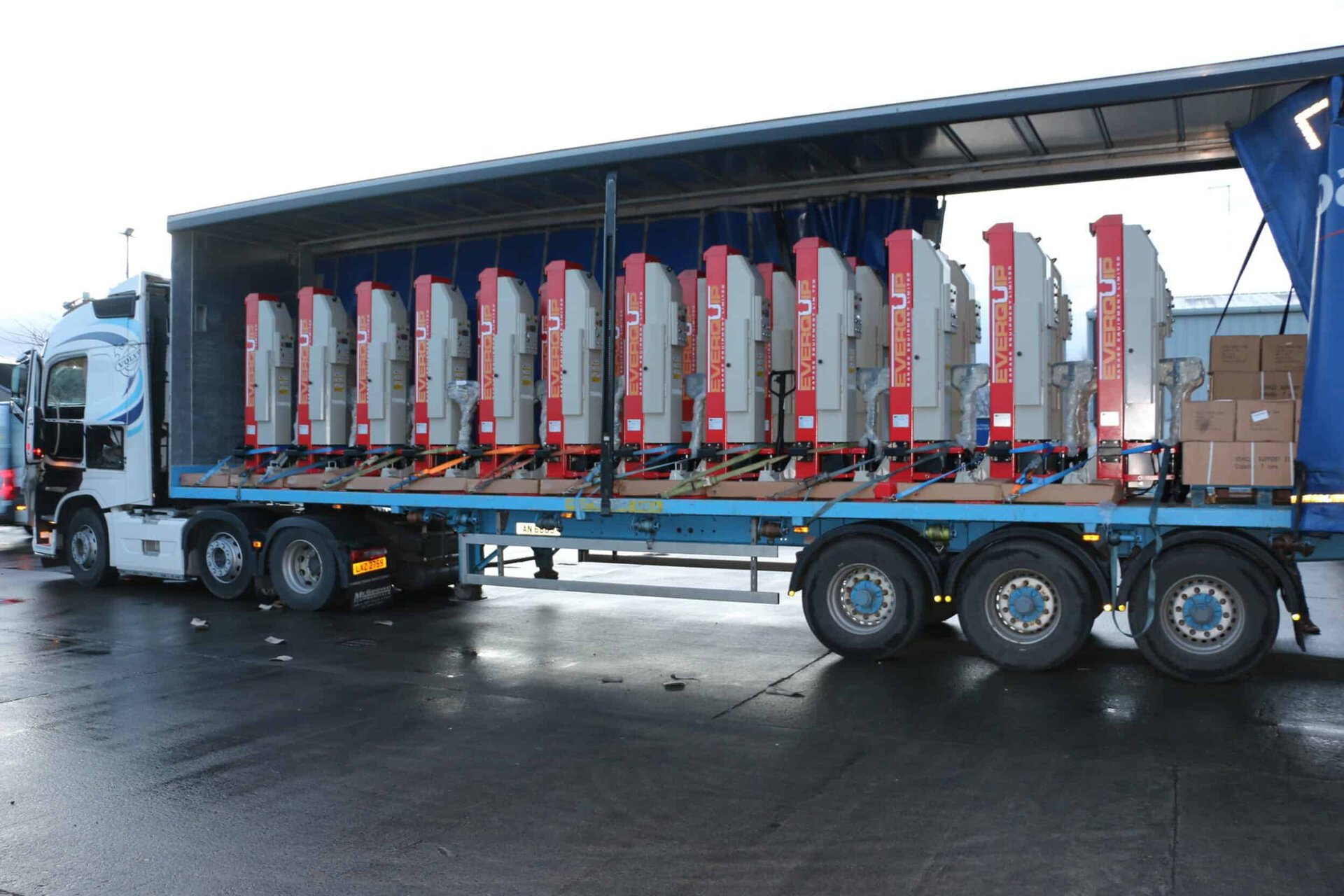

Mobile columns can be wheeled between bays, reconfigured in minutes, and even transported between depots entirely. For larger operators, that portability is the whole point. Take a group such as Arriva London, running around 2,500 vehicles across 14 garages. Demand across those sites is never evenly distributed, and mobile columns let an operator shift lifting capacity to wherever it’s needed on a given day, rather than duplicating fixed infrastructure at every location.
Wireless Setup and Modern Safety Systems
Modern mobile column systems are battery-powered and wirelessly synchronised, which does away with trailing cables, the trip hazards that come with them, and a good deal of setup complexity. More importantly, quality systems now build in safety features that should be considered non-negotiable rather than optional extras: electromagnetic safety locks (spark-free), dual mechanical and hydraulic locking systems, and spring-loaded trolleys for controlled movement. These features, alongside regular LOLER inspections, are what make the difference between safe, compliant, reliable lifting and a system you end up fighting against.
Cost Positioning
A standard set of four heavy-duty mobile columns typically starts from around £20,000, depending on capacity and specification. Set against the full civil installation cost of a pit or in-ground lift, that’s often a significantly lower upfront commitment, which is part of why they appeal to operators who want lifting capability without a building project attached.
Who Is Driving the Popularity?
Mobile columns aren’t replacing every other lifting system, but in certain environments they have quietly become the preferred choice. A few use cases stand out.
Multi-Site Operators
Large, distributed operations live and die by flexibility, scalability and the ability to move equipment where it’s needed. Mobile columns suit them well because a single set can be shared across sites, redeployed quickly when workload spikes somewhere, and they avoid the cost of duplicating capital equipment in every depot.
Mixed Fleets (Councils and Municipal Operators)
This is one of the strongest cases of all. A typical council workshop might see refuse vehicles, gritters, vans and minibuses in the same week, each with different axle configurations and wheelbases. A fixed lift can quickly become restrictive in that environment, whereas mobile columns simply adapt to whatever vehicle turns up that day.
Leased Buildings
For operators on three to five year leases, sinking money into permanent infrastructure rarely makes sense, because the investment effectively stays with the landlord’s building. Mobile columns require no excavation, can be relocated if you move premises, and protect the capital you’ve put into them.
Heavy Repair and Wheels-Off Work
Suspension work, gearbox removal and engine access all demand full under-chassis clearance. Mobile columns deliver exactly that: clear, unobstructed access and full lift capability with no structural elements in the way.
Maximising Productivity and Space Utilisation
One of the most underrated advantages of mobile columns is what they do to your use of space.
With a fixed system, only designated bays can lift vehicles. With mobile columns, any suitable flat slab becomes a working bay, which opens up far more dynamic workflow, additional capacity at busy times, and fewer bottlenecks. A single set can also be used together to lift a large articulated vehicle, or split into smaller sets, for example two groups of four, to handle multiple rigid trucks at once.
Because they store compactly when they’re not in use, mobile columns also avoid the permanent dead space that fixed lifts occupy. When the columns are parked up, that floor area is freed for parking, storage or other maintenance work.
The Trade-Off: Setup Time
This is where honesty matters, and where a good supplier should be upfront with you. Mobile columns need positioning, alignment and synchronisation before every lift, which typically takes 10 to 15 minutes per vehicle. In a lower-volume workshop, that’s entirely manageable. In a high-throughput environment, that time compounds across a shift and starts to eat directly into productivity. It’s the single biggest factor that should give a busy operator pause.
Mobile Columns vs Inspection Pits at a Glance
Because the choice so often comes down to columns versus a pit, it helps to see the main trade-offs side by side:
| Consideration | Mobile Column Lifts | Prefabricated Steel Pit |
|---|---|---|
| Upfront civil works | None – runs on an existing slab | Excavation, drainage and concreting required |
| Installation disruption | Minimal; usable almost immediately | Significant downtime during the build |
| Daily throughput | ~8–10 vehicles per shift | Up to ~35 vehicles per day |
| Setup per vehicle | 10–15 minutes positioning and syncing | Drive-on, drive-off – no setup |
| Flexibility | Moves between bays and sites | Fixed in one location |
| Ongoing maintenance | LOLER inspections, servicing, batteries | Minimal once installed |
| Lifespan / warranty | Mechanical equipment lifecycle | 25-year structural warranty |
| Best thought of as | Flexible equipment | Long-term infrastructure |
Where Mobile Columns Are Not the Right Choice
Most mistakes with mobile columns don’t happen because the equipment is bad. They happen because it’s chosen for the wrong scenario. There are four situations where another solution is usually the better answer.
What Minimum Ceiling Height Do You Need to Lift Commercial Vehicles Safely?
This is the critical limitation. If your workshop ceiling is 14ft (roughly 4.2m) or lower, you physically cannot lift a double-decker bus safely on columns. In that scenario a commercial vehicle pit isn’t merely preferable, it’s the only viable professional option.
High-Throughput Operations
If you process large volumes daily and run rapid inspection cycles, the 10 to 15 minute setup time turns columns into a bottleneck. The contrast with a pit is stark: a pit is drive-on, drive-off with no setup at all. In practice a pit can handle up to around 35 vehicles a day, whereas a mobile column setup tends to cap out at roughly 8 to 10 vehicles per shift once you account for repositioning. In a high-volume operation, that’s a major operational difference rather than a minor inconvenience.
Long-Term Infrastructure vs Equipment
Mobile columns are mechanical systems, and like all mechanical systems they need ongoing maintenance: LOLER inspections every 6 to 12 months, regular servicing and periodic battery replacement. A prefabricated steel pit behaves quite differently. Built to BS EN 1090 standards, CE/UKCA marked and carrying a 25-year structural warranty, it requires minimal maintenance over its life. The right way to think about it is that columns are equipment, while a pit is infrastructure, and the cost models for the two are fundamentally different.
What Concrete Floor Conditions Do Mobile Column Lifts Require?
Mobile columns need a level, structurally sound concrete slab to operate safely. If your existing floor is uneven, too thin or otherwise compromised, the columns may not be safe to use until the slab has been remediated, which is a cost worth identifying before you commit, not after.
The “Million Pound Mistake” to Avoid
The most common and most expensive planning error we see is choosing the lifting solution before properly understanding the building it has to work in. Do it in that order and you end up with ceiling height conflicts, floor load problems and workflow inefficiencies, which frequently lead to costly redesigns further down the line.
The correct sequence is always the same: assess the building first, understand how the workshop needs to operate, and only then specify the solution that fits both.
Everquip’s Position: Design-Led, Not Product-Led
Part of what makes this decision confusing for operators is that most suppliers only sell one type of solution, so their recommendation will always point towards the thing they happen to make. Everquip is set up differently. We supply UK-manufactured ProperPits as our infrastructure solution, the Everquip EVQ-7500 mobile column lift as a cost-efficient lifting option, and in-ground heavy duty lifts where they’re the right fit. Because we’re not tied to a single product, the recommendation is based on what your workshop actually needs rather than what we’re trying to shift.
Next Steps: Assess Your Workshop Properly
Before choosing any lifting solution, it’s worth gathering the following so the decision is grounded in your real operating conditions:
- Vehicle types and weights
- Wheelbase variation across the fleet
- Ceiling height
- Floor condition and slab specification
- Daily throughput targets
- Lease duration, if you don’t own the building
With that information in hand, you can avoid the expensive mistakes, operational bottlenecks and short-term decisions that so often create long-term problems.
Key Takeaways
- Mobile columns win on flexibility: no civil works, and one set can move between bays or even depots.
- A standard set of four heavy-duty columns starts from around £20,000, well below the cost of a full pit installation.
- The trade-off is setup time (10–15 minutes per vehicle), which makes columns a poor fit for high-throughput workshops.
- Ceiling height below 14ft, very high volumes, or poor floors all point towards a pit instead.
- Assess the building first, then the workflow, then specify the equipment, never the other way round.
Final Thought
Mobile column lifts are growing in popularity for good reason. They solve genuine problems around flexibility, space and multi-site operation that fixed infrastructure simply can’t. But they aren’t a universal answer. The right decision always comes down to how your workshop actually operates day to day, not what happens to be popular at the moment. If you get the diagnosis right, the equipment choice tends to follow naturally.
Frequently Asked Questions
How much do mobile column lifts cost?
A standard set of four heavy-duty columns typically starts from around £20,000, depending on capacity and specification.
Do mobile columns require a specific floor?
Yes. They need a level concrete slab with adequate load-bearing capacity, so a floor assessment is always worthwhile before purchase.
Are mobile column lifts safe?
Yes, provided they include proper safety systems such as electromagnetic locks and dual locking, and undergo LOLER inspections every 6 to 12 months.
Can they lift fully loaded vehicles?
Yes, as long as the total load does not exceed the system’s rated capacity.
When should I choose a pit instead?
A pit is usually the better choice where ceiling height is below 14ft, where you’re running high-throughput operations, or where you’re investing in long-term infrastructure rather than flexible equipment.
