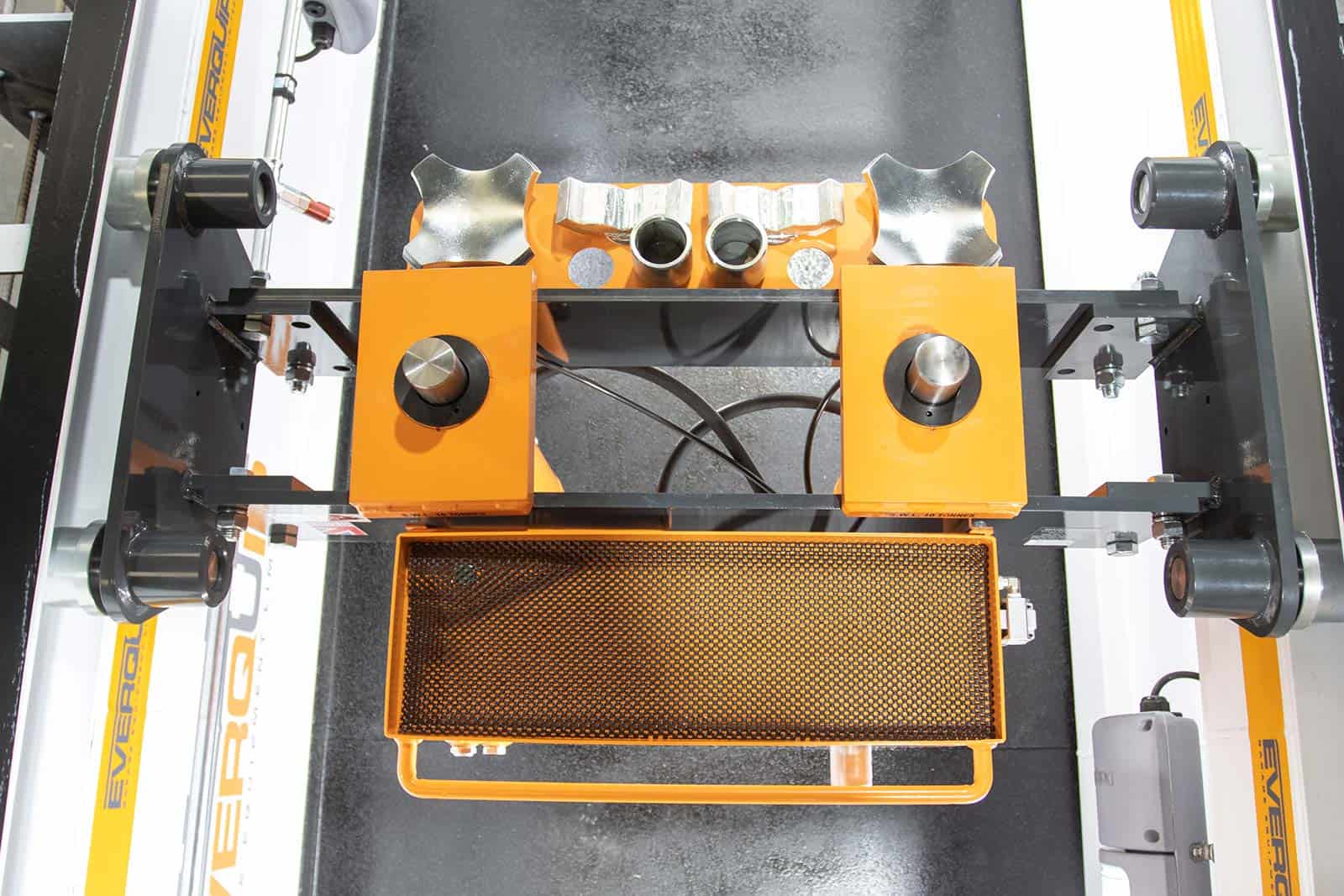

An Everquip Pit Jack is an essential piece of pit equipment that is operated from within the pit to lift a vehicle off the floor to allow access to the wheels.
It allows it operator to safely lift the vehicle, the Pit Jack is supported from the integral upper pit jack rail within the Everquip Pit and the compressed air is located close to the Pit Jack with a recoil air hose. It is supplied with adaptors which fit on the end of the rams to allows lifting from different areas of the axle. An Everquip Pit Jack can also be fitted with a spreader beam for use particularly with buses and coaches. When springs need to be changed the vehicle can also be jacked on the chassis leaving the axle on the ground. It also enables you to reach jacking points beyond the width of your pit.
- 20000kgs lifting capacity with double rams (10000kgs per ram)
- Air operated
- Pit widths from 750-1400mm
- Two double acting hydraulic cylinders have 400mm stroke
- Each cylinder is fitted with a safety hose burst valve and 90 degrees movement isolation valve
- Each cylinder can be used independently of each other
- 1 year parts & labour warranty and a further 4 year parts warranty
- Adapters provided as standard
- Additional spreader beam can be supplied for independent suspension lifting or smaller vehicles, such as Class 7 Vans
- Fully tested, marked with serial number and supplied with LOLER test certificate
- Every Everquip Pit Jack is individually manufactured to suit your pit size and requirements
- Over 5000 Everquip Pit Jacks have been sold to other 13 countries world wide
