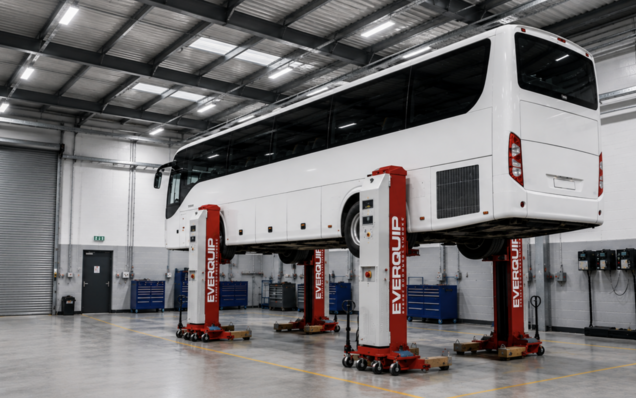

Mobile column lifts are used to inspect the underside of a vehicle, by allowing a clear working space around the vehicle.
Everquip supply, install and maintain EVQ-7500 mobile column lifts.
EVQ-7500 FEATURES:
- 30T Capacity
- Wireless technology
- 24 Volt DC control
- Adjustable Forks
- Forklift points
- Trolley wheels
- 2 batteries in each column
- 20 lifting cycles with full load
- One battery charger in each column
- 5-meter charging cable
- Batteries can be charged during operation
- Recharging time approx. 10 hours
- Synchronisation at a height difference of 50 mm

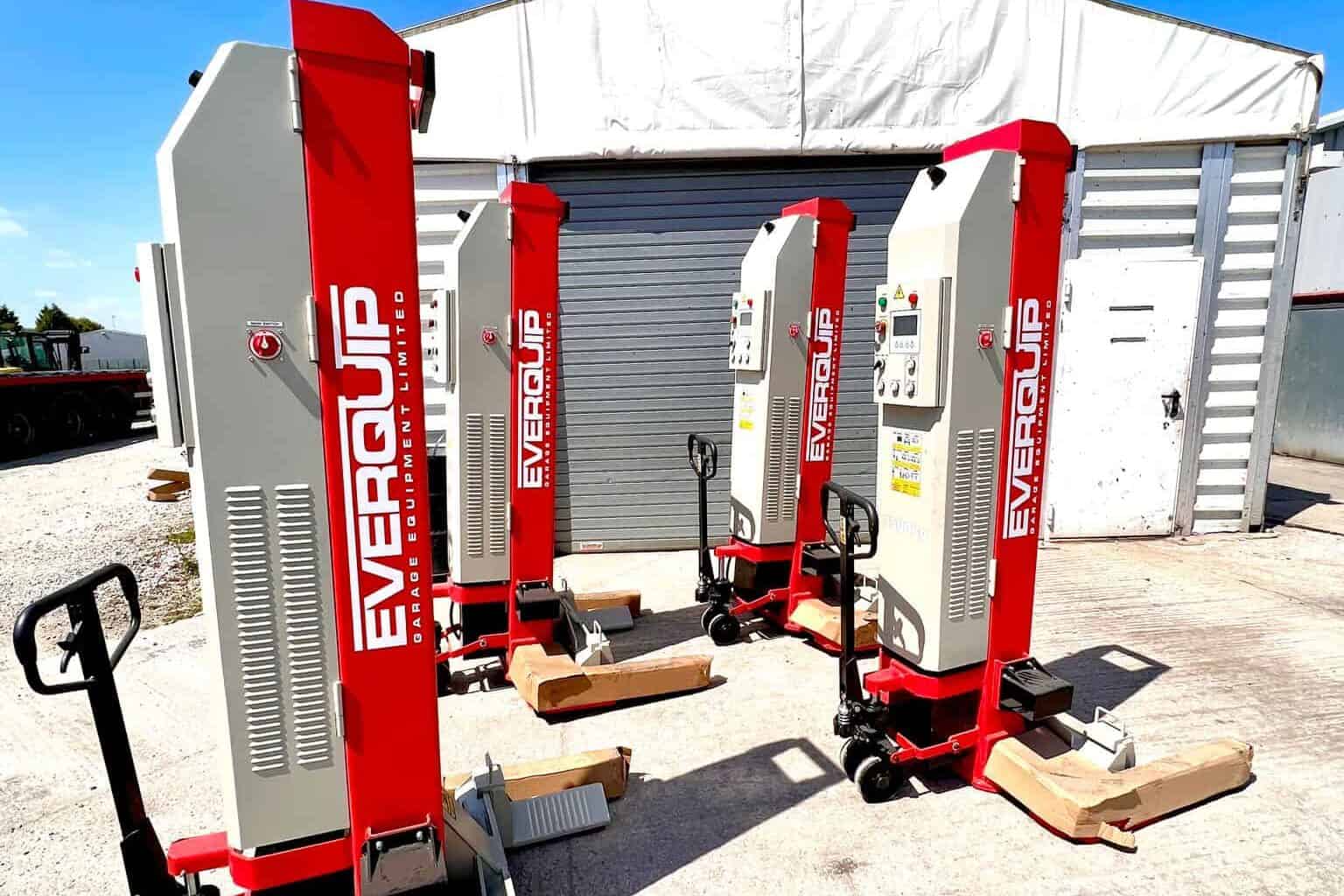

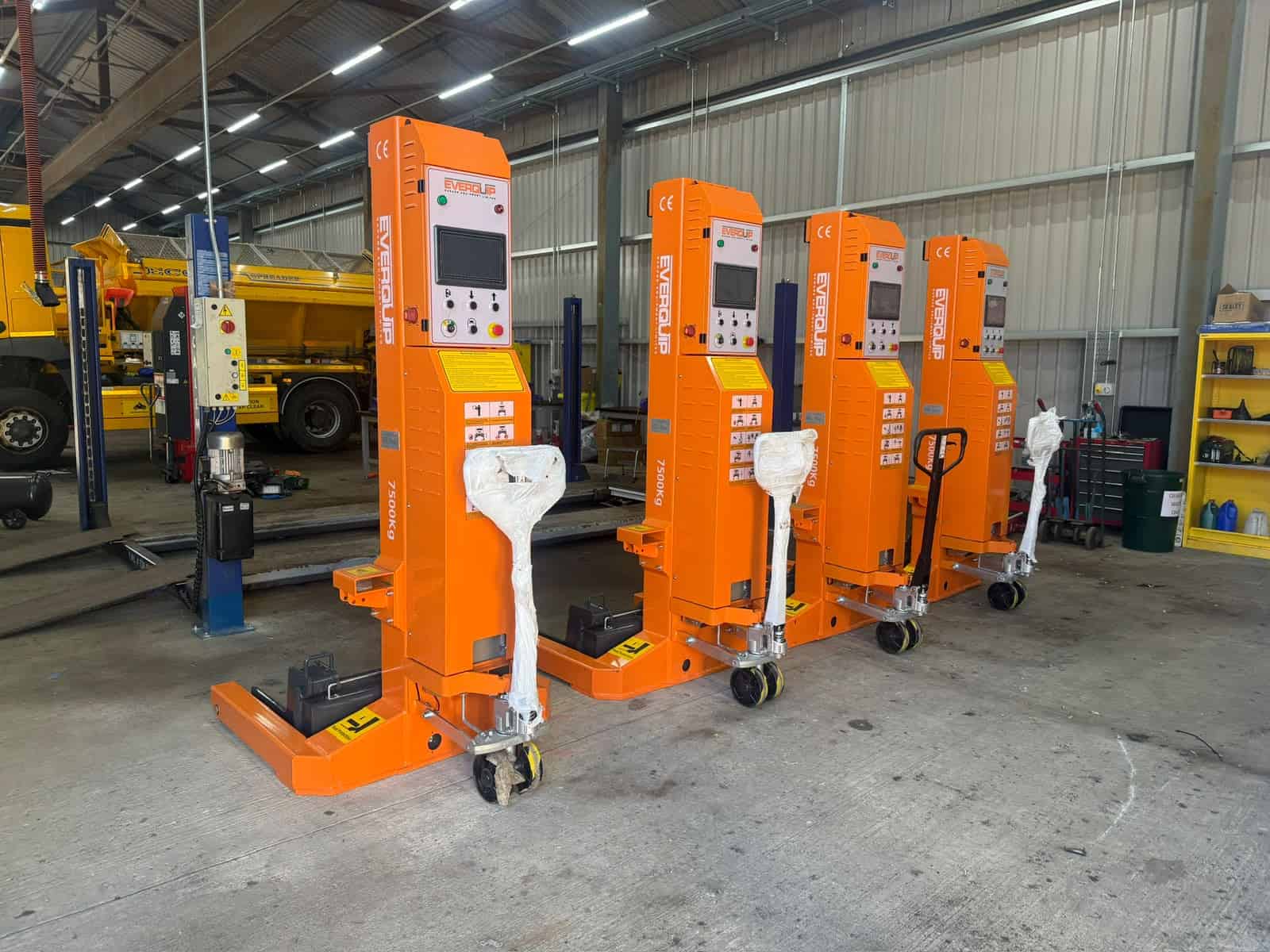

The EVQ-7500 mobile column lifts are a popular choice in commercial vehicle workshops and have a 30 ton capacity.
A portable set of 4 lifts, designed for flexibility and ease of use. It operates wirelessly and is powered by rechargeable 24-volt batteries, allowing you to use it at any location without an external power source. The synchronising system provides smooth lifting, even with uneven loads, and the 24-volt motor and hydraulic pump guarantee efficient and powerful performance.

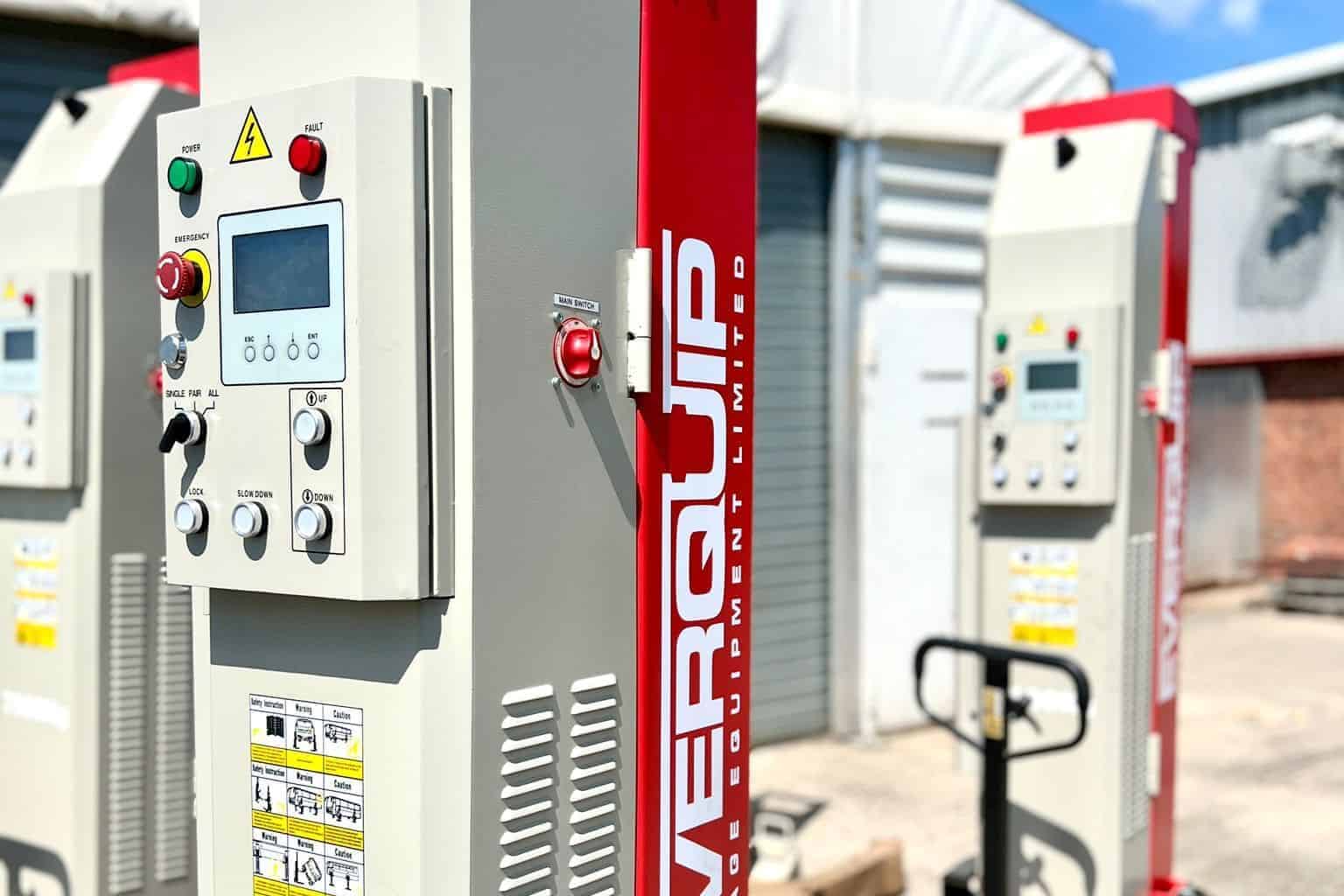

Safety is a key feature of the EVQ-7500, with a height limit switch that stops the lift at its highest point and a mechanical lock on each column. If there’s more than 50mm difference between any of the columns, the lift will stop. The LCD display shows important information, including the current lifting height, battery level, and mode type.
The wireless design eliminates trip hazards from cables and makes transport effortless. Each column has both operation and emergency stop buttons for ease of use. The lift is CE certified and water-proof with an IP54 rating, making it suitable for use in any garage or workshop.
| Model: | EVQ-7500 |
| Lifting Capacity: | 7.5T Per Column 30T Overall |
| Max Lifting Height: | 1700mm |
| Voltage: | 24v |
| Motor Power: | 2.2kw |
| Column Dimensions: | 1300(L) x 1100(W) x 2300(H) mm |
| Fork Length: | 380mm |
| Fork Width: | 280 – 580mm |
| Weight: | 680kg (Per Column) |
| Lifting Time: | 120s |
| Battery Capacity: | 20 Up and Down cycles |
| Battery Charger: | 220v |
