Most of the problems operators describe with older concrete pits share a root cause. Concrete ages in ways that create structural, safety and compliance issues, and many pits were installed for vehicles and regulatory standards that have since moved on. The result is a workshop asset that costs more to maintain each year, creates problems at DVSA and health and safety audits, and makes life harder for the technicians who use it every working day.
This article walks through the seven failure modes Everquip’s engineers encounter most often on site assessments, and explains what a modern prefabricated steel pit does differently for each one. It also covers the cases where refurbishment makes more sense than replacement, so you can make an honest assessment of where you stand before committing to anything.

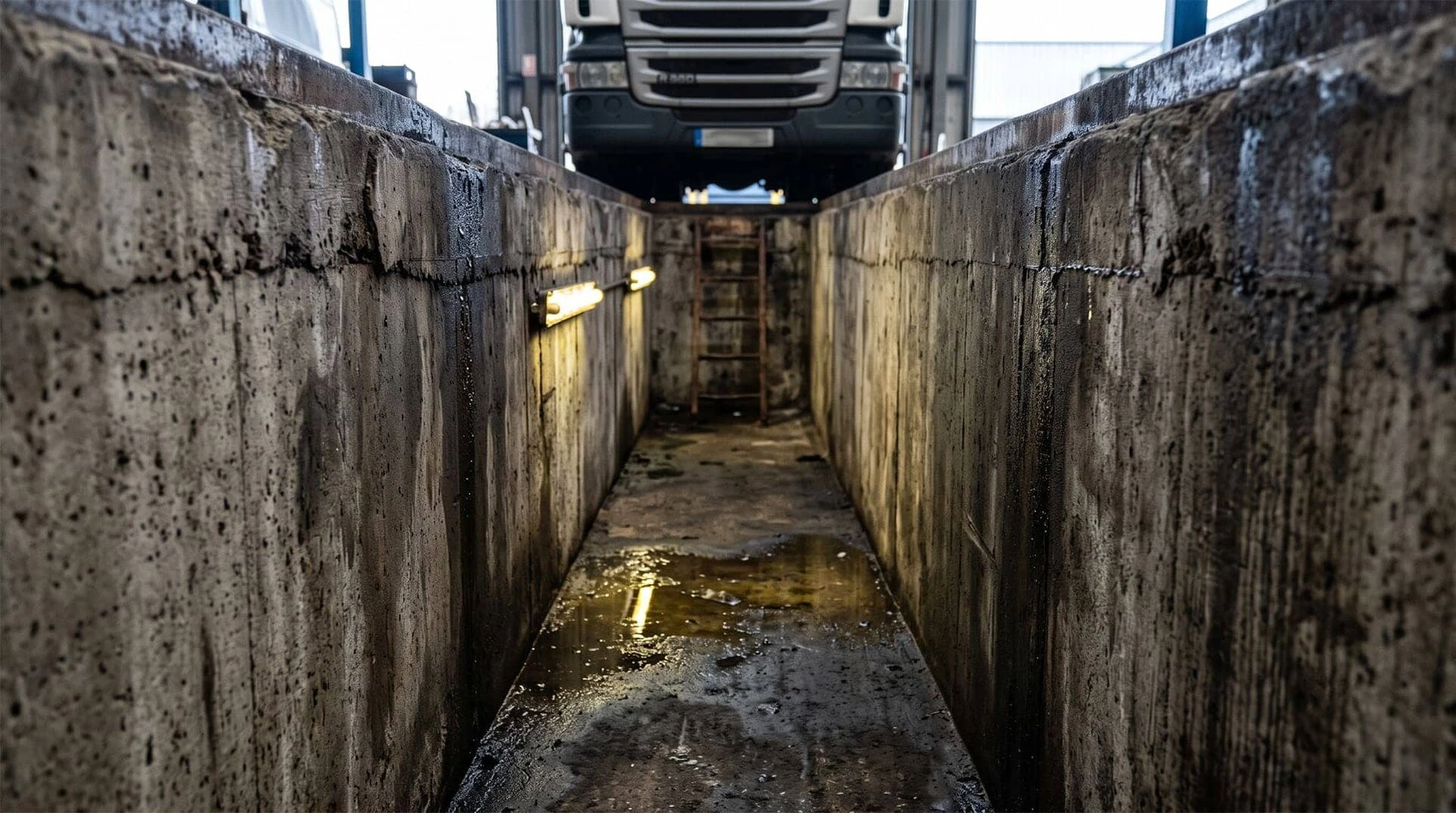

What Happens to a Concrete Inspection Pit Over Time
A concrete pit installed 20, 30 or 40 years ago was probably well built for its era. The problem is not that these pits were wrong when they went in. It is that concrete behaves in predictable ways over a long service life: it absorbs moisture, settles and shifts with seasonal ground movement, and deteriorates in the presence of the fluids and chemicals that are part of everyday workshop operation. The vehicles and regulations it was designed around have also changed considerably.
The seven problems below rarely arrive all at once. They compound. A pit that was leaking slightly a few years ago is now leaking badly. The lighting that was adequate in the early 2000s is now a safety concern. The dimensions that worked for the fleet at the time may no longer suit the vehicles coming through the gate today.
Problem 1: Water Ingress and Damp
This is the most common complaint Everquip hears from operators with older concrete pits, and it is worth understanding why it is so persistent.
Concrete is porous. Even when it is well mixed and properly cured, it absorbs moisture over time. As the ground around a pit goes through seasonal wet and dry cycles, the concrete settles and shifts slightly, developing hairline cracks in the process. Those cracks are the entry points for groundwater. In areas with a high water table, or where drainage around the pit was not designed carefully, the result is standing water on the floor and damp walls that never fully dry out.
The consequences compound. Standing water is a slip hazard. Damp conditions introduce electrical risk around lighting and equipment. Tools and jacks stored in the pit corrode faster. The working environment becomes persistently unpleasant in a way that affects morale and, over time, retention.
The typical response is a cycle of waterproofing treatments, tanking paint and sump pumps. These manage the symptom but do not address the cause, and the cost of repeating them every few years adds up.
A welded steel pit resolves this at the design stage rather than in perpetuity. It is a fully sealed unit with no mortar joints, no porous surface and no gaps for groundwater to enter. The ingress problem does not need managing because the construction eliminates it.
Problem 2: Structural Decay in Ageing Service Pits
Reinforced concrete exposed to water and chlorides will, over time, suffer from a process called spalling. The steel reinforcement inside the concrete begins to corrode, and as it expands it cracks the material around it from the inside. The visible signs are crumbling edges, loose fragments and flaking render on the walls and ceiling.
In most above-ground settings, spalling is a cosmetic problem. In an inspection pit, it is a safety one. A technician working beneath a vehicle is directly below the walls and ceiling of the pit, so falling debris, even small fragments, is a genuine hazard.
Beyond the immediate safety concern, structural deterioration raises a broader question about load-bearing capacity. A pit in good condition is engineered to carry specific vehicle weights. Compromised concrete may no longer be meeting that specification, and the liability that comes with that is real.
Everquip’s ProperPits are made to order in the UK and engineered with full structural design calculations for the axle loads they will carry, and they are backed by a 25-year structural warranty against manufacturing defects. That structural case is documented at the design stage, does not degrade over time, and does not leave an operator wondering whether an ageing shell still meets its original rating.
Problem 3: Lighting That No Longer Meets the Standard
Many concrete pits were installed with basic fluorescent tube lighting appropriate for their era. The standard of illumination expected in a modern commercial vehicle workshop, particularly one carrying out safety inspections, is considerably higher.
Poor pit lighting is a safety risk in the direct sense: a technician who cannot see clearly is more likely to miss a defect during a PMI. It is also a quality-of-work issue. A safety inspection carried out in poor visibility is less reliable than one carried out in good light, regardless of how experienced the technician is.
The practical difficulty with upgrading lighting in an old concrete pit is that the environment works against you. Rough, porous walls make cable routing messy and complicated, and every fitting needs to be rated for a damp environment. The results are rarely as good as a purpose-designed installation, and the cost of the retrofit is often higher than expected.
Modern Everquip pits are specified with LED lighting designed for the damp conditions of a working pit and integrated from the outset rather than retrofitted. Just as importantly, the smooth steel walls reflect light far more effectively than rough concrete, so the same installed output produces a noticeably brighter and more uniform working space below the vehicle.
Problem 4: Fume Accumulation and Confined Space Risk
This problem sits in a different category from the others because the consequence is not a maintenance cost or an audit finding. It is a risk to life, and it is worth stating plainly.
Heavy gases, including exhaust fumes and fuel vapour, are denser than air. In a workshop they sink to the lowest point in the building, which is the inspection pit. A pit that is not adequately ventilated accumulates these gases during normal operation, and in an older concrete pit with no designed ventilation provision the build-up can occur faster than it appears.
Under HSE guidance on confined spaces, a vehicle inspection pit may be classified as a confined space depending on its depth, ventilation and configuration. Where that classification applies, the Confined Spaces Regulations 1997 require formal entry procedures, atmospheric monitoring and rescue arrangements before anyone enters, and where fuel vapour is present the DSEAR regulations add further duties around flammable atmospheres. A significant number of operators with older concrete pits have never formally assessed their pit against these requirements. If you have not done so, it is worth checking with a competent person before the question is raised during an inspection.
A new steel pit installation allows ventilation to be designed in from the start rather than added as an afterthought, and the smooth steel walls allow air to circulate more efficiently than the rough surface of old concrete.
Problem 5: Surfaces That Cannot Be Kept Clean
Concrete absorbs everything. In a working commercial vehicle workshop, that means oil, coolant, hydraulic fluid, diesel and grease. After years of operation, this contamination penetrates the surface to a depth that no amount of pressure washing can address.
The result is a pit that is never genuinely clean. The accumulated residue on the floor creates a slip hazard that exists whether it is visible or not. The walls hold contamination in a way that makes them a poor environment for inspection work, and makes it harder to notice new leaks or drips on a vehicle under examination.
Repainting is a partial solution, but paint does not bond reliably to a heavily contaminated concrete surface. The results are short-lived and the process needs repeating more often than it should.
The pressed steel walls and anti-slip chequer-plate flooring of a prefabricated pit clean to a different standard. The surface is smooth and non-porous, so it can be wiped down or pressure-washed without contamination being absorbed into the material. When a cosmetic refresh is needed, a coat of paint adheres properly to clean steel. Monthly cleaning becomes a routine maintenance task rather than an ongoing losing battle.
Problem 6: Access and Egress That Falls Short
Many older concrete pits were built with access arrangements that reflected the standards of the time. A fixed iron ladder, steep concrete steps cut into the pit wall, or a single-point entry difficult to negotiate with tools in hand were all common. Some pits have access that is effectively unchanged from the day they were installed, which may be 40 years ago.
A technician needs to be able to enter and exit the pit safely and quickly, including under pressure in an emergency. Modern Everquip pits are designed for exactly that, with anti-slip steps at the entrance and a dedicated access ladder at the exit, included in the standard specification rather than added as options.
Retrofitting good access to an old concrete pit is technically possible but rarely straightforward. The original layout often does not leave adequate room for properly dimensioned steps with the correct nosing, rise and handrail provision, and the result is usually a compromise that satisfies some requirements but not all.
Where an operator’s existing pit has worn step edges, missing or damaged handrails, or a single ladder as the only means of entry or exit, those are exactly the findings that appear on DVSA and health and safety audit reports. They are also the items most likely to be cited in an investigation if an incident occurs.
Problem 7: A Workshop Pit Built for Vehicles That No Longer Exist
A pit specified in the 1980s or 1990s was designed around the fleet at the time. For many workshops, that fleet has changed considerably. Modern HGVs are often longer and heavier. Articulated combinations have grown in length and in axle configuration. Wide-body buses and coaches have different clearance requirements. Refuse trucks and municipal vehicles have body configurations that affect access from below.
When a pit’s dimensions no longer suit the vehicles going into it, the workshop carries that constraint every single working day.
The most common mismatch Everquip encounters on site assessments is depth. Older pits are frequently too shallow to accommodate the equipment that modern workshop operations require, particularly when operators are upgrading to, or installing, an ATF lane with DVSA-approved load simulation. A Vamag LiftBed load simulator, for example, which pulls the chassis down to 65% of design axle weight in around 18 to 20 seconds, needs a pit specified around its hydraulic system, and a pit dug to 1980s standards often cannot take it without significant additional groundworks. Our brake tester cost guide covers how that equipment fits into a lane in more detail.
This situation appears often enough that it has its own informal name in the industry: the “architect’s million-pound mistake,” where a pit is dug too shallow during a new build because the equipment specification was not pinned down early enough in the design process. By the time the civils are complete, the cost of going deeper is considerable.
This is the one problem on the list that genuinely cannot be patched. A pit that is the wrong size for the fleet, or for the equipment it needs to house, is the wrong pit. The only answer is a replacement or a new installation, specified correctly from the outset, with some thought given to where the operation will be in ten years. Because a modern prefabricated pit is fabricated to order, it can be built around the vehicles and equipment it actually needs to accommodate rather than a generic size.
The Seven Problems at a Glance
| Problem | What it costs you | How a modern prefabricated pit addresses it |
|---|---|---|
| Water ingress | Repeated waterproofing spend; slip and electrical risk | Fully welded sealed unit, no joints or porous surface |
| Structural decay | Falling debris; reduced load capacity; liability | Full structural design calculations; 25-year structural warranty |
| Poor lighting | Safety risk; missed defects; poor working environment | LED lighting designed in from installation; smooth steel reflects light better |
| Fume accumulation | Confined space risk; regulatory exposure | Ventilation designed in at installation stage |
| Uncleanable surfaces | Slip risk; contamination; short-lived repaints | Smooth steel walls and chequer-plate floor, wipeable and repaintable |
| Inadequate access | Health and safety non-compliance; audit findings | Anti-slip steps and a dedicated ladder as standard |
| Wrong dimensions | Restricted throughput; equipment limitations | Fabricated to order for the current fleet and equipment |
When Refurbishment Makes More Sense Than Replacement
Not every old concrete pit needs to come out, and it would be misleading to suggest otherwise.
If the sub-surface concrete structure is fundamentally sound, meaning no chronic water ingress, no spalling and no significant cracking, and the dimensions still suit both the fleet and any planned equipment installation, the case for full replacement is weaker. In that situation, the question is whether targeted improvements can extend the working life of the pit at a more proportionate cost.
Lighting and ventilation can often be upgraded within an otherwise serviceable concrete pit and are worth considering as a first step. But where the pit also suffers from damp walls, rough surfaces and inadequate drainage, a more comprehensive solution may be available without a full demolition and rebuild.
Everquip’s PitClad system is designed for exactly this situation. It involves fabricating a bespoke, precision-welded steel liner that drops directly into the existing concrete opening. The existing blockwork shell is retained, and the steel liner resolves the surface, ingress and drainage problems in one installation. For a standard 12-metre pit, a PitClad transformation typically costs around £15,000 and takes approximately five days to complete.
The cases where PitClad or refurbishment is unlikely to be the right answer are a pit with structural deterioration so advanced that the concrete shell itself is compromised, a pit with dimensions that cannot suit the fleet regardless of what goes inside it, and a site where the lease is short enough that neither option makes financial sense. A site assessment will give a clear view of which category a specific pit falls into.
The Next Step: A Free Site Assessment
Most operators who have lived with a problem concrete pit for years put off the conversation because they assume it will be expensive and disruptive. In practice, the assessment itself is neither.
Everquip’s engineers visit the site, review the existing pit, identify the specific failure modes, and give a straightforward view of whether a new installation, a PitClad refurbishment or targeted upgrades make the most sense. The assessment covers the building constraints, floor depth, ceiling height, approach path and services, and produces an honest answer on the scope of work rather than a sales pitch. There is no obligation to proceed.
Where a full new installation is the right answer, a standard prefabricated steel pit typically takes around 10 days from the start of installation to a working pit. For operators worried about workshop disruption, that is usually considerably less than they were expecting.
Book a free site assessment with Everquip’s engineers.
Key Takeaways
- Most problems with older concrete inspection pits share a root cause: concrete ages in ways that create water ingress, structural decay and surface contamination, while vehicles and regulatory standards have moved on since the pit was built.
- The seven most common failure modes are water ingress, structural decay, poor lighting, fume accumulation and confined space risk, uncleanable surfaces, inadequate access, and wrong dimensions.
- A modern prefabricated steel pit addresses all seven at the design stage. Everquip’s ProperPits are made to order in the UK with full structural design calculations and a 25-year structural warranty, with LED lighting and safe access designed in from the start rather than retrofitted.
- Not every old pit needs replacing. Where the concrete structure is sound but the surfaces, lighting and drainage are the problem, Everquip’s PitClad steel liner system offers a five-day refurbishment at significantly lower cost than a full new installation.
- The cases where refurbishment is unlikely to work are structural spalling, chronic water ingress and wrong dimensions. None of these can be fixed without addressing the concrete itself.
- A free site assessment is the right starting point. It is the only way to get a reliable recommendation about whether to refurbish or replace, and there is no obligation to proceed.
Frequently Asked Questions
What are the most common problems with older concrete inspection pits?
The seven that come up most often are water ingress and damp, structural decay and spalling, inadequate lighting, fume accumulation and confined space risk, surfaces that cannot be properly cleaned, access and egress that does not meet current standards, and dimensions that no longer match the fleet or the equipment. They tend to compound over time: a pit with one problem today often has several by the time a replacement conversation begins.
Can an old concrete pit be refurbished rather than replaced?
Yes, in the right circumstances. Everquip’s PitClad system drops a precision-welded steel liner directly into an existing concrete opening, resolving water ingress, surface and drainage problems without demolishing the original structure. For a standard 12-metre pit, this typically costs around £15,000 and takes around five days. Where the concrete structure is sound and the dimensions are still correct for the fleet, this is often the more proportionate answer. Where there is structural spalling, chronic groundwater problems or a dimension mismatch, a full replacement should be considered instead.
Why do concrete inspection pits leak, and can it be fixed permanently?
Concrete is porous and develops hairline cracks over time as the ground around it shifts through seasonal wet and dry cycles. Waterproofing treatments and tanking manage the symptom but the underlying cause remains, which is why the same pit needs treating again every few years. A fully welded steel pit, or a PitClad liner installed into a sound concrete shell, eliminates the problem rather than managing it, because there are no porous surfaces or mortar joints for water to penetrate.
Do vehicle inspection pits need to be treated as confined spaces?
Under HSE guidance, a vehicle inspection pit may be classified as a confined space depending on its depth, ventilation and configuration. Where that classification applies, the Confined Spaces Regulations 1997 require formal entry procedures, atmospheric monitoring and rescue arrangements before anyone enters. If you have an older concrete pit and have not assessed it against these requirements, it is worth doing so with a competent person before the question arises during an audit.
How long does it take to install a new prefabricated steel pit?
A standard new prefabricated steel pit installation typically takes around 10 days from the start of installation. The pit shell is fabricated off-site and arrives ready to install, which significantly reduces the time the workshop is out of action compared with a traditional in-situ concrete build. Ground preparation, meaning excavation, base formation and services, adds time and depends on the site, and Everquip’s site assessment will give a realistic programme for your specific location.
How do I know whether my pit needs replacing or just refurbishing?
It depends on the specific pit and site, which is why a site assessment is the right starting point. Structural decay, chronic water ingress and wrong dimensions point towards full replacement or a new installation. Sound concrete with surface, lighting, drainage or access problems is a candidate for PitClad refurbishment or targeted upgrades. A site assessment with Everquip’s engineers is free, carries no obligation, and gives a clear view of what is actually wrong and what the practical options are.
